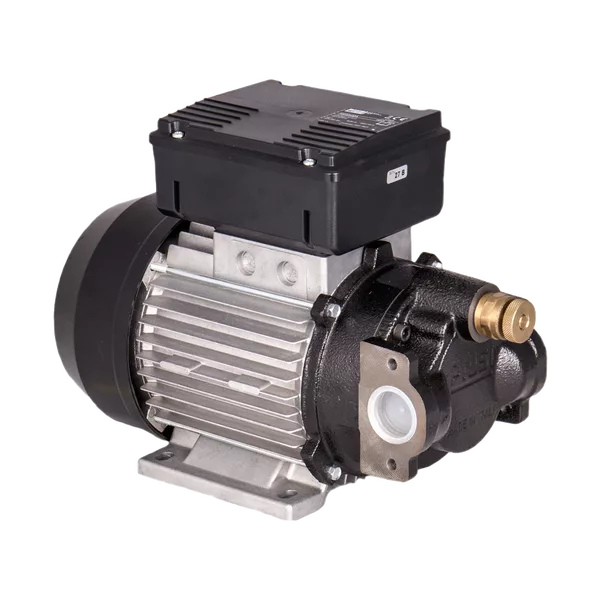

VISCOMAT VANE - Oil And Diesel Transfer Pump
Viscomat Vane is an oil and diesel transfer pump with a self-priming AC vane mechanism capable of handling viscosities up to 500 cSt. It offers a suction performance up to 87 PSI and includes an adjustable bypass integrated into the pump body. Its rotor is made of sintered steel with resin vanes and the pump design allows side-access to the shaft seal for easier maintenance.
Product category
Lubrication
Fluid
Oil, Diesel
Application
Off-Road, Industrial, Agriculture
VISCOMAT VANE
Viscomat Vane is an oil and diesel transfer pump, available in the Viscomat Vane 70 version.
The available AC version is suitable for all those applications where it is necessary to apply a transfer system with high suction capacity in order to transfer fluids with medium-high viscosity.
HIGH PERFORMANCE
The high density of the oil, compared to other types of liquids, requires a greater strength in the transfer phase. For this reason, the Viscomat Vane oil transfer pump is characterized by the AC self-priming vane pump, capable of supporting and guaranteeing a constant flow rate and regularity in the flow dispensed with low viscosity, up to 500 cSt with a flow rate of up to 7 GPM. The continuous operation ensures high suction capacity with pressure up to 87 psi. The asynchronous AC motor, on the other hand, is self-ventilated, in order to adapt to any working condition.
The Viscomat Vane oil transfer pump offers the possibility to regulate the operation with closed delivery, thanks to the application of the bypass integrated in the pump body.
RELIABLE
The sintered steel rotor has resin vanes that provide good strength to the rotor during transfer. For greater safety of the oil transfer system, Viscomat Vane can be accessed from the pump side to ensure proper maintenance of the rotating shaft seal.
If you are looking for a high performance oil transfer pump, choose the quality Made in PIUSI.
This product has a CE certification, but not an NEC or NFPA recognized marking. It is for agricultural diesel/oil applications only.
Features
- ADJUSTABLE BYPASS
- MULTI-PURPOSE PUMP
- SUITABLE TO TRANSFER WASTE OILS
- CONTINUOUS OPERATION
