K600/3 - Diesel version
Electronic gear digital diesel fuel flow meter for dispensing diesel monitoring. Non-commercial use. Repeatability 0.2% pressure drop <7.25 psi at the max. Click.
Product category
Fuel
Fluid
Diesel
Application
Agriculture, Fleet, Off-Road, Industrial
K600/3

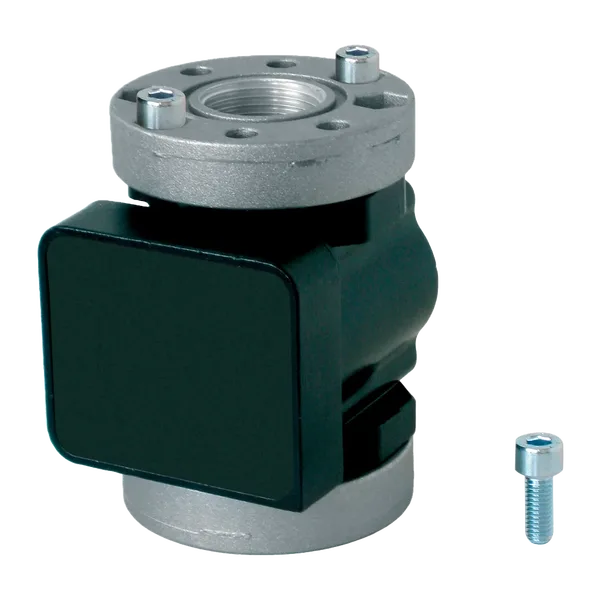

K600/3 is an electronic gear flow meter indicated for the control of the dispensing of diesel, for non-commercial use.
K600/3 electronic flow meter shows on the display a partial total of 5 digits (h=11.5 mm) with floating point from 0.001 to 999.99 Total, non-resettable to 8 digits (h=5 mm) from 1 to 99999999.
MADE IN PIUSI RELIABILITY
The K600/3 flow meter features acetal resin oval gears for monitoring the dispensing of low, medium and high viscosity fluids such as fuels, lubricating oils and other special fluids compatible with the construction materials. Equipped with an aluminum measuring chamber body, it consists of an integrated suction filter to ensure a safe dispensing without impurities, which otherwise could cause unpleasant blocks while dispensing.
HIGH PRECISION
The K600/3 flow meter for diesel ensures a monitoring accuracy of +/- 0.5% for a maximum flow rate of 26.4 GPM.
These features complete the K600/3 flow meter:
Repeatability 0.2%
Pressure drop < 7.25 psi at the max. flow rate.
Features
- Adjustable flanges
- Suitable for industrial applications
- Ideal for mobile installations
- Low energy consumptions
