EXTREME

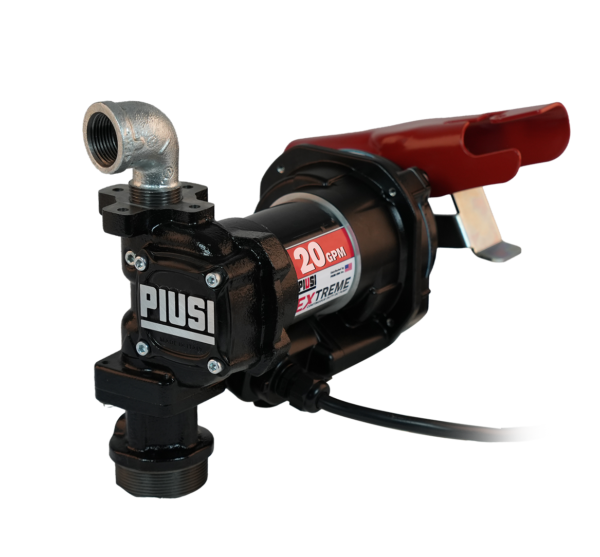

DC Diesel Transfer Pump 12V/24V - Continuous Duty
Product category
Fuel
Fluid
Diesel, Kerosene, Gasoline
Application
Off-Road, Industrial, Marine
THE PIUSI EXTREME CONTINUOUS-DUTY DUAL-VOLTAGE DC FUEL TRANSFER PUMP
Our EXTREME DC fuel transfer pump is built to handle continuous-duty applications (S1) with maximum flow, safety, and efficiency.
Transfer fuel uninterrupted with this heavy-duty 12V/24V DC diesel transfer pump in the most demanding applications.
Performance and Technical specifications
The EXTREME DC diesel transfer pump is available in two flow rate options:
- 16 GPM | 60 l/min
- 20 GPM | 76 l/min
Two different options for entry level or high flow demands, the EXTREME pumps utilize spring-loaded vane technology that ensure consistent fuel transfer performance.
Protective Systems
The EXTREME DC diesel transfer pump has been designed with:
- Reverse polarity protection
- Overvoltage and overcurrent protection
- Locked rotor protection
- Built-in thermal protector
- Solid-State Magnetic Switch
Built to handle rough environments and long periods of use, while keeping you safe.
Environmental specifications & certifications
With a wide operating temperature range and several safety certifications, the EXTREME can handle harsh conditions:
- Operating Temperature: -22°F to 125°F (-30°C to 52°C)
- UL/cUL Listed
- HazLoc approved
- IP55
- Robust Construction & Easy Installation
Design Features
Additionally, EXTREME includes:
- Retrofittable bung adapter with built-in strainer
Applications
This DC diesel transfer pump is used in:
- Construction
- Mining
- Agriculture
- Marine
- Off-road/Fleet Fueling
Choose a Reliable DC Diesel Transfer Pump
PIUSI’s EXTREME DC diesel transfer pump is the perfect fit when you need continuous duty from your DC diesel transfer pump.
👉 Contact PIUSI USA now for more information or to request a quote.
Features
- Flow rates: 16 GPM / 20 GPM
- 12V & 24V DC
- Continuous duty (S1 rated)
- Built-in protection systems
- UL/cUL certified, IP55 rated
- Operating Temp Range: -22°F to 125°F (-30°C to 52°C)
